Window

7,00

Completely parametric Revit window family.

Features:

  • Can be single swing or double swing, depending on chosen sub-family (can be easily expanded with more sub-families, no matter the configuration)

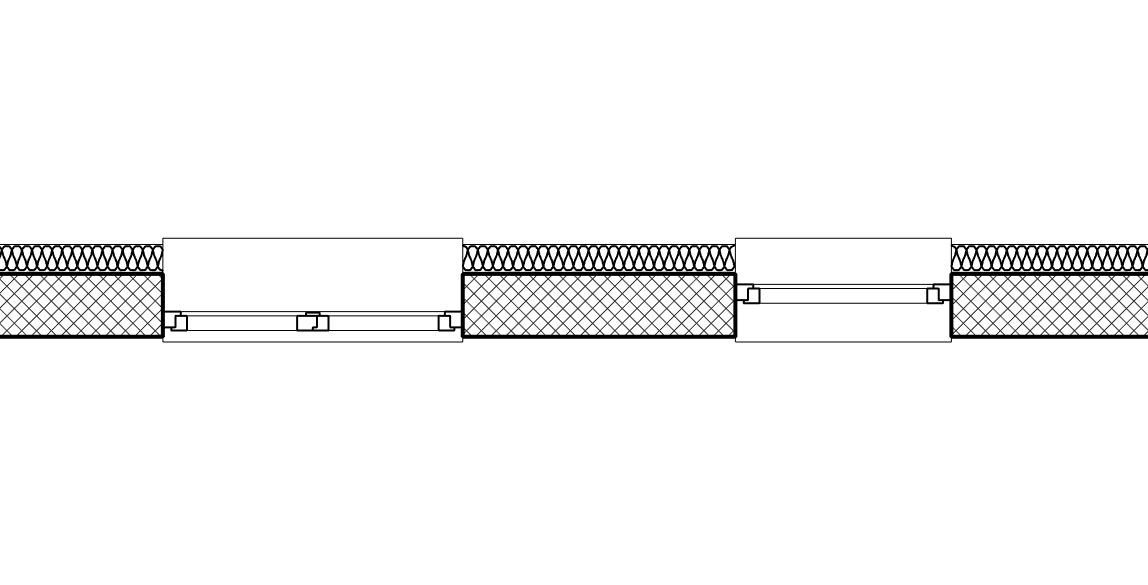

  • Glass subcategory can be switched off in Coarse views
  • Uses Rough Width and Rough Height parameters for structural (masonry) opening in wall
  • Opening tolerance parameter
  • Uses Width and Height parameters for window (ordering) size
  • Window instance can be set on different wall depths
  • Window sill cover can be adjusted automatically according to wall or manually to any depth
  • Works fine with composite walls and joined walls (when wall layers are modeled as separated)

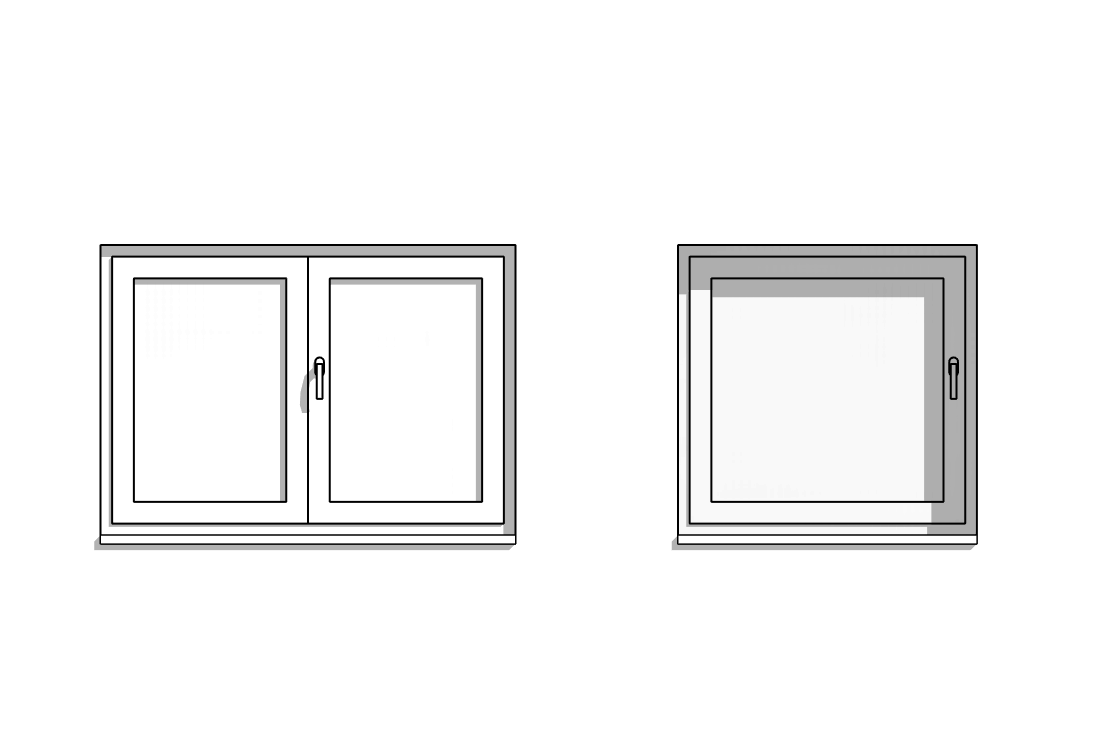

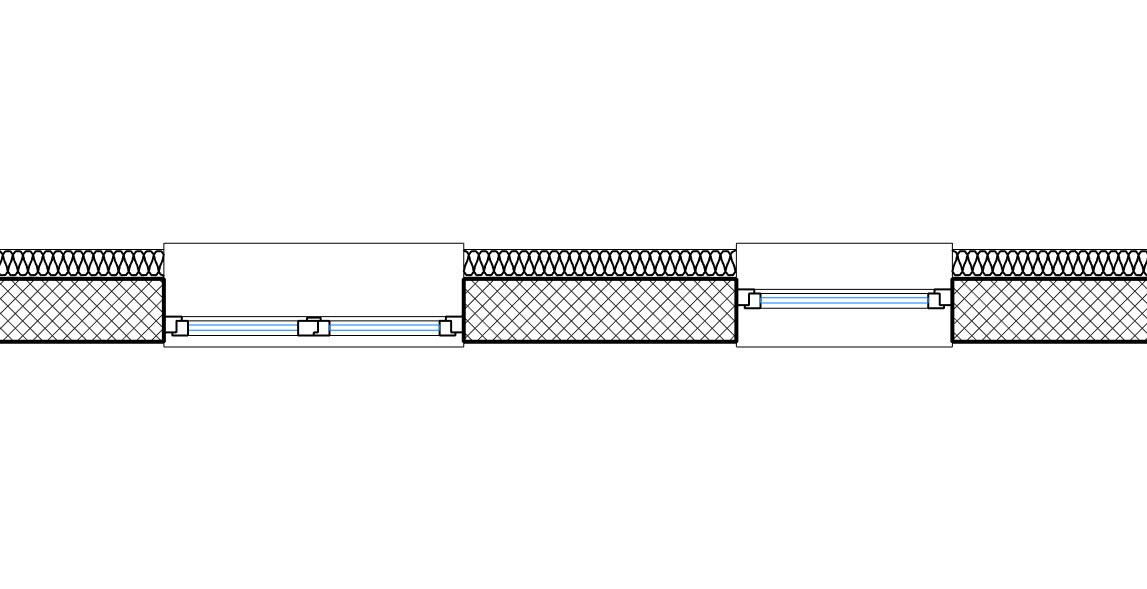

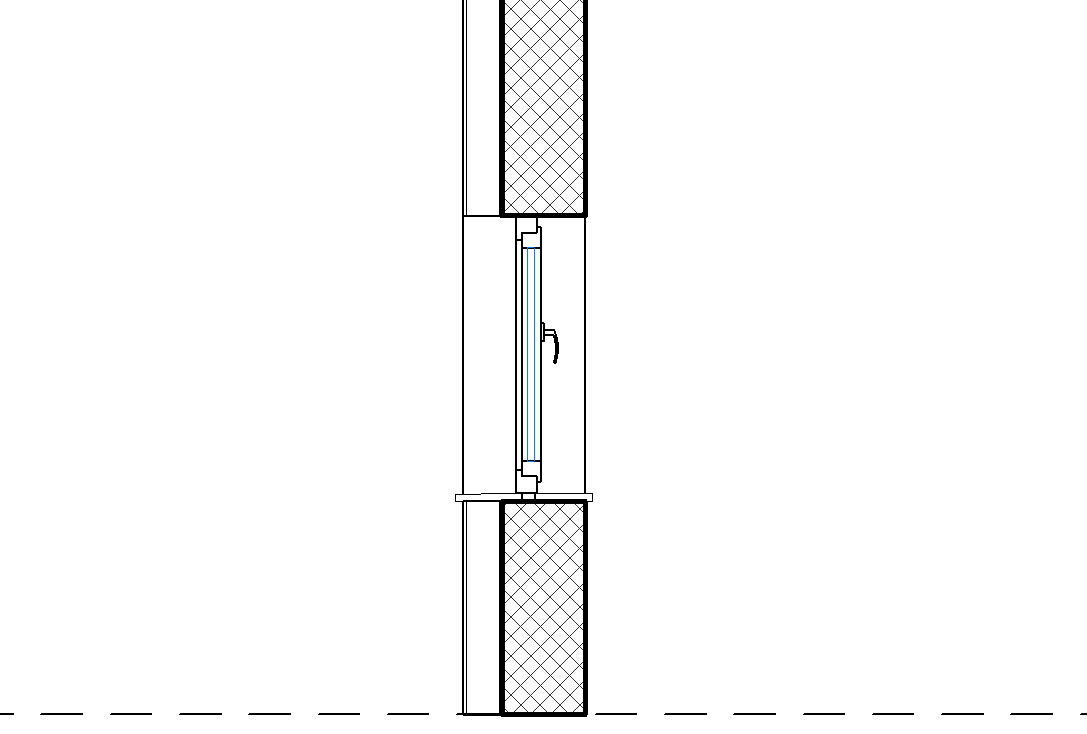

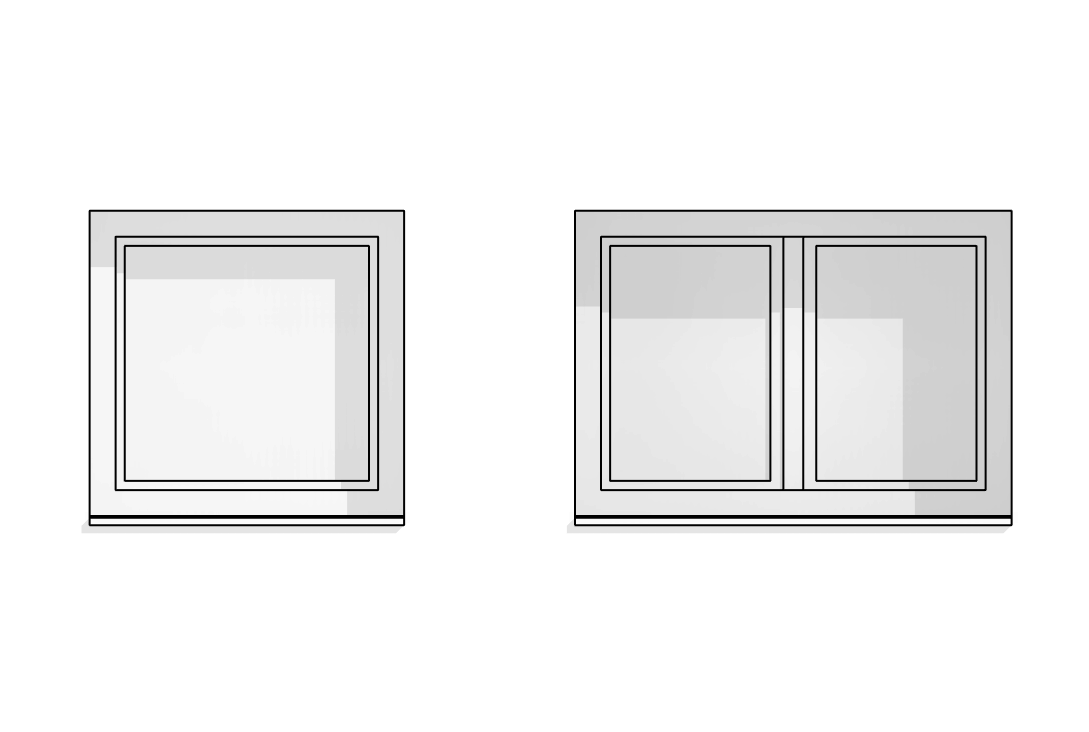

All shown details (floor plan, section and elevation views) are in 1:50 scale.
