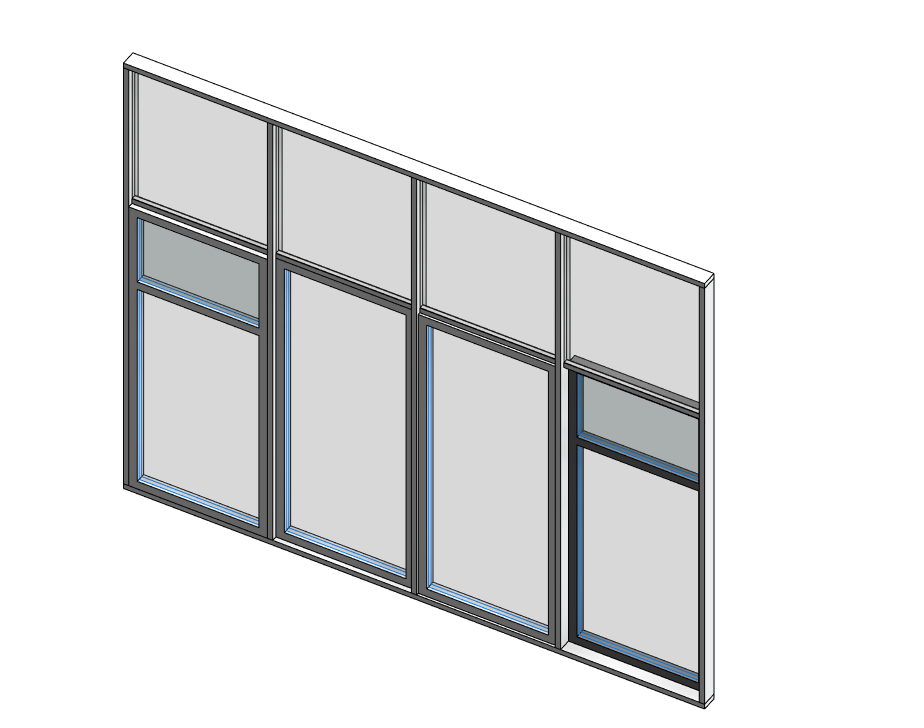

Curtain Wall Door/Window with Overlight


Completely parametric Revit curtain wall door/window family with overlight.

Curtain Panel family has sub-family in Doors category. Glass is in Glass subcategory of Doors category.

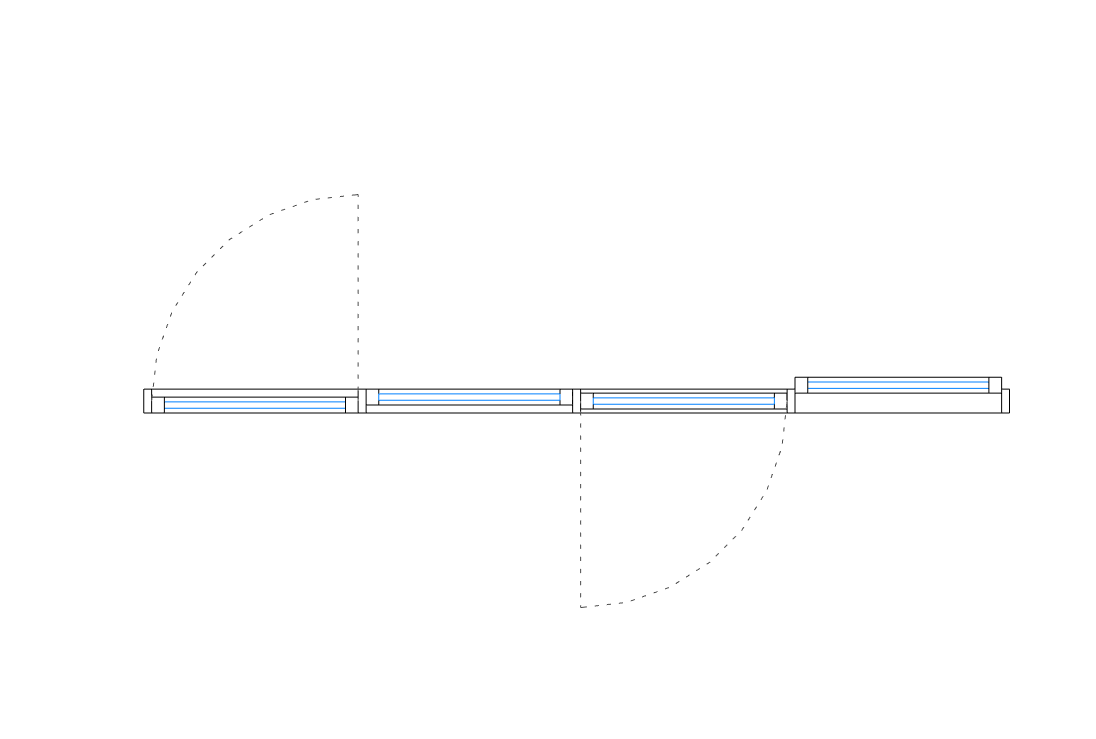

  • Can show plan swing (if used as door).
  • Can be set on different depth in Curtain Wall.
  • Visibility of glass can be switched off in view by un-checking Glass subcategory of Doors category.
  • Frame profile is fully parametric.
  • Overhead height can be changed.
